JBZ1000

Wide-range Programmable DC Power Supply

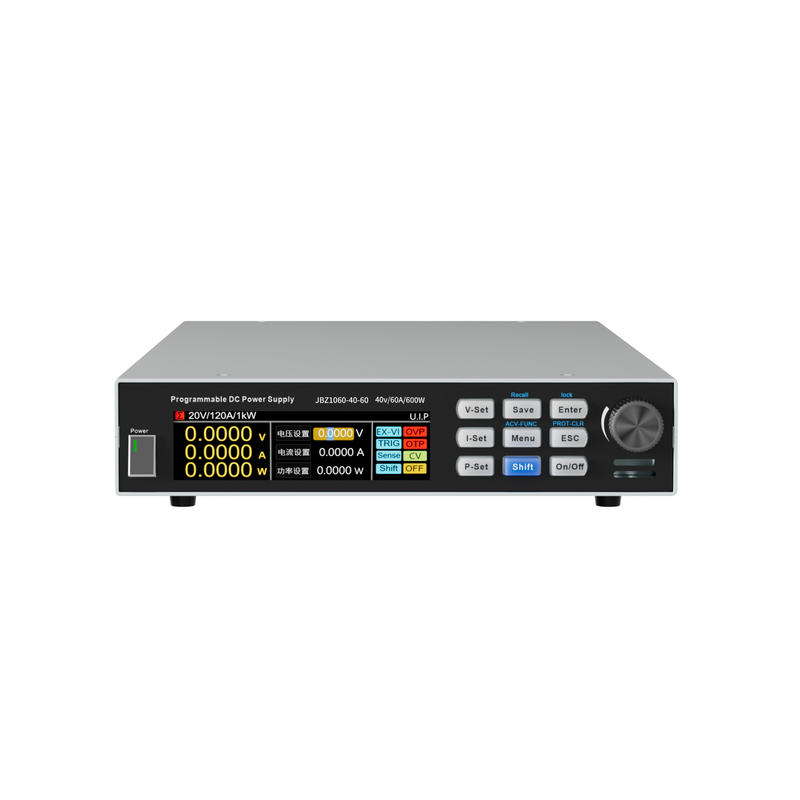

The JBZ1000 series power supply is a high-performance programmable DC power supply featuring a 1U compact size, high precision and low ripple noise. It is equipped with abundant functions including line loss compensation, CV/CC priority, slow rise and slow fall, sequence control, battery internal resistance simulation, and timed shutdown. It comes standard with isolated LAN and RS232 communication interfaces, with CAN and RS485 interfaces available as optional upgrades. Adopting a wide-view color LCD screen and supporting operation via physical buttons and knobs, it serves as an optimal choice for users to improve work efficiency.

The JBZ1000 series power supplies feature a rich product portfolio and are widely applied in fields such as automotive electronics, power electronics, adapters, semiconductors, converters, DC motors, as well as the R&D, testing, integration and production of power devices.

Features

nVoltage: 0~800V

nCurrent: 0~240A

nPower: 0~600W, 0~1kW (Half),

0~2kW (Full)

nVoltage Accuracy: 0.025% F.S;

Current Accuracy: 0.05% F.S

nVoltage and Current Sampling Rate: 1MHz, High Resolution 16 Bits;

nConstant Voltage, Constant Current and Constant Power Modes;

nActive PFC Control, Power Factor: 0.99;

nVoltage Line Loss Compensation, No Out-of-Control upon Disconnection;

nVoltage and Current Priority Function;

nAdjustable voltage and current slew rates;

nVoltage soft-rise and soft-fall functions;

nBattery internal resistance simulation;

nUp to 100-step sequence function, supporting linking, looping and other operations;

nComprehensive protection functions, including overvoltage, overcurrent, overpower, overtemperature and more.

nEquipped with abundant digital and analog signal monitoring ports (optional);

nStandard LAN and RS232 communication interfaces, with optional CAN and RS485 interfaces;

nParallel operation function supported (optional);

nSDK development kit and upper computer demonstration software provided.

Applications

nDevelopment and testing of power supplies, converters and adapter modules;

nTesting of BMS, fuel cells, power batteries, supercapacitors and other related products;

nPower supply environment simulation for vehicle-mounted, airborne and ship-borne electronic

nPower supply, design and testing in the fields of drones, lasers and sensors

nTesting and aging of power devices, automotive electronics, wire harnesses, etc.

Wide-range output, multi-functional in one device

The output of the JBZ1000 series DC power supply adopts a 2.4-times wide-range output design. Under the rated output power, a single power supply can deliver voltage and current within a wider range, meeting the application scenarios of testing products with different voltage and current specifications. It effectively reduces the cost and space occupation of power supplies in laboratories or automated test systems.

Sequence Function

The JBZ1000 provides users with a sequence editing function that can simulate power supply interruption and instantaneous voltage drop of the device under test, as well as simulate other voltage and current variations. Each sequence file contains 100 steps and supports looping and linking, enabling users to easily output complex waveforms.

CV, CC take priority

When the power supply output is connected to an inductive or capacitive load, it will cause a certain degree of overshoot in the output current or voltage. In mild cases, it will trigger the protection of the device under test; in severe cases, it will directly damage the device under test. The JBZ1000 series is equipped with CV and CC output priority functions, which can effectively suppress output overshoot and its consequent impacts.

Battery Internal Resistance

The JBZ1000 series power supply is equipped with a battery internal resistance simulation output function. When the output current of the power supply increases, the output voltage can be adjusted according to the internal resistance value preset by the user.

Voltage slow rise and slow fall

The JBZ1000 series power supply facilitates users in testing the power supply stability of equipment. Users can complete tests ranging from several milliseconds to more than ten hours by configuring parameters such as time, slope, and voltage value according to testing requirements.

Rich external interfaces

The JBZ1000 series power supply is equipped with a rich set of interfaces for automation, integration and other applications. It comes standard with LAN Ethernet and RS232 communication ports, and optional interfaces such as CAN, RS485, trigger IO and analog monitoring can be flexibly configured according to customers' specific requirements. It supports protocols including SCPI, MODBUS and CANOpen.

Specification table
